LCT HTW 1200, Standard: Without insulation as standard

LCT HTW 1200, Standard: Without insulation as standard

LCT HTW 1200, Standard: Without insulation as standard

LCT HTW 1200, Standard: Without insulation as standard

LCT HTW 1200, Standard: Without insulation as standard

LCT HTW 1200, Standard: Without insulation as standard

LCT HTW 1200, Standard: Without insulation as standard

SKU: 0001-32

Category: HTW

Delivery time: ca. 7 weeks (DE - int. shipments may differ)

17.601,29 €

17.601,29 € per 1

incl. 19% VAT ,

The LCT-HTW 1200 contains with following components:

Single-stage cleaning and degreasing
Made entirely of stainless steel
Simple and safe
Ideal for parts cleaning, maintenance, production, manufacturing, and services
Wash fluid tank: 485 liters
Contaminants: resin, wax, scale, mineral rust, corrosion protection, solder, polishing pastes, dust, abrasion, release agents, oil, grease, carbon deposits, soot

Stck

The LCT-HTW 1200 is a fully automatic small parts washing system for single-stage cleaning and degreasing.

A maintenance-friendly high-pressure spray system with a three-dimensional nozzle system offers us the LCT HTW 1200 for thorough cleaning and degreasing of tools and other parts. The driven rotating basket and the spray pressure ensure our cleaners work optimally on the parts to be cleaned.

Features:

Made entirely of stainless steel (V2A), suitable for mechanical cleaning in acidic, neutral, and alkaline environments.
Fan nozzles
Digital temperature controllers • Electrically driven rotating basket with motor protection
Push-button for turning the basket outside the cleaning process • Tank cover and sieve filter under the basket made of stainless steel
Connections for plate phase separators • Compact design, easy handling, high cleaning power
Dry run protection, door safety switch • Effective and cost-effective; energy-efficient
Operating pressure: 4 bar

Technical Data:

Minimum operating temperature: 10°C
Maximum operating temperature: 85°C
Maximum filling capacity: 485 liters
Inner basket diameter: approximately 1175 mm
Usable height: 650 mm
Total weight without tank filling: 400 KG
Tank material: V2A stainless steel
Power consumption: approximately 11.5 kW
Electrical connection: 400 V, 50 Hz
Heating: 9 kW
Flow rate: 12 m³/h"

There are no reviews yet.

LCT HTW 1200

Hier können Sie das Maschinenprospekt herunterladen.

PDF

Exhaust hose Masterflex LCT-HTW-1200 to 1500

Exhaust hose Masterflex LCT-HTW-1200 to 1500

68,96 € *

Delivery time: ca. 5 weeks (DE - int. shipments may differ)

Traffic light system (red-yellow-green) without siren for...

Traffic light system (red-yellow-green) without siren for the LCT-HTW-800 to 1500

452,20 € *

Delivery time: ca. 5 weeks (DE - int. shipments may differ)

Auffangwanne aus Edelstahl mit 2 Lenk- und Bockrollen...

Auffangwanne aus Edelstahl mit 2 Lenk- und Bockrollen für LCT-HTW-1200

4.213,79 € *

Delivery time: 2 - 4 Workdays (DE - int. shipments may differ)

Auffangwanne aus Edelstahlblech für LCT-HTW-1200

Auffangwanne aus Edelstahlblech für LCT-HTW-1200

1.468,46 € *

Delivery time: ca. 5 weeks (DE - int. shipments may differ)

Automatic level control for the LCT-HTW-800 to 1500

Automatic level control for the LCT-HTW-800 to 1500

Automatic level control for the LCT-HTW-800 to 1500

479,57 € *

Delivery time: ca. 5 weeks (DE - int. shipments may differ)

Steam vapor extraction LCT HTW 800-1500 including...

Steam vapor extraction LCT HTW 800-1500 including condensate recovery bend (1/2" connection)

2.429,98 € *

Delivery time: ca. 5 weeks (DE - int. shipments may differ)

Nozzle assembly height-adjustable per nozzle system...

Nozzle assembly height-adjustable per nozzle system LCT-HTW-800 to 1500

1.025,78 € *

Delivery time: ca. 3 months (DE - int. shipments may differ)

Stainless steel filter housing 1" with candle filter...

Stainless steel filter housing 1" with candle filter incl. 350µm nylon filter for LCT-HTW-1500 to 800

824,67 € *

Delivery time: ca. 5 weeks (DE - int. shipments may differ)

Stainless steel filter housing 1" with filter bag...

Stainless steel filter housing 1" with filter bag incl. 350µm nylon filter for LCT-HTW-1500 to 800

2.836,96 € *

Delivery time: ca. 5 weeks (DE - int. shipments may differ)

Increase of the operating pressure from 4 to 7 bar, incl....

Increase of the operating pressure from 4 to 7 bar, incl. juice start-up, LCT-HTW 1000 to 1500

2.882,18 € *

Delivery time: ca. 5 weeks (DE - int. shipments may differ)

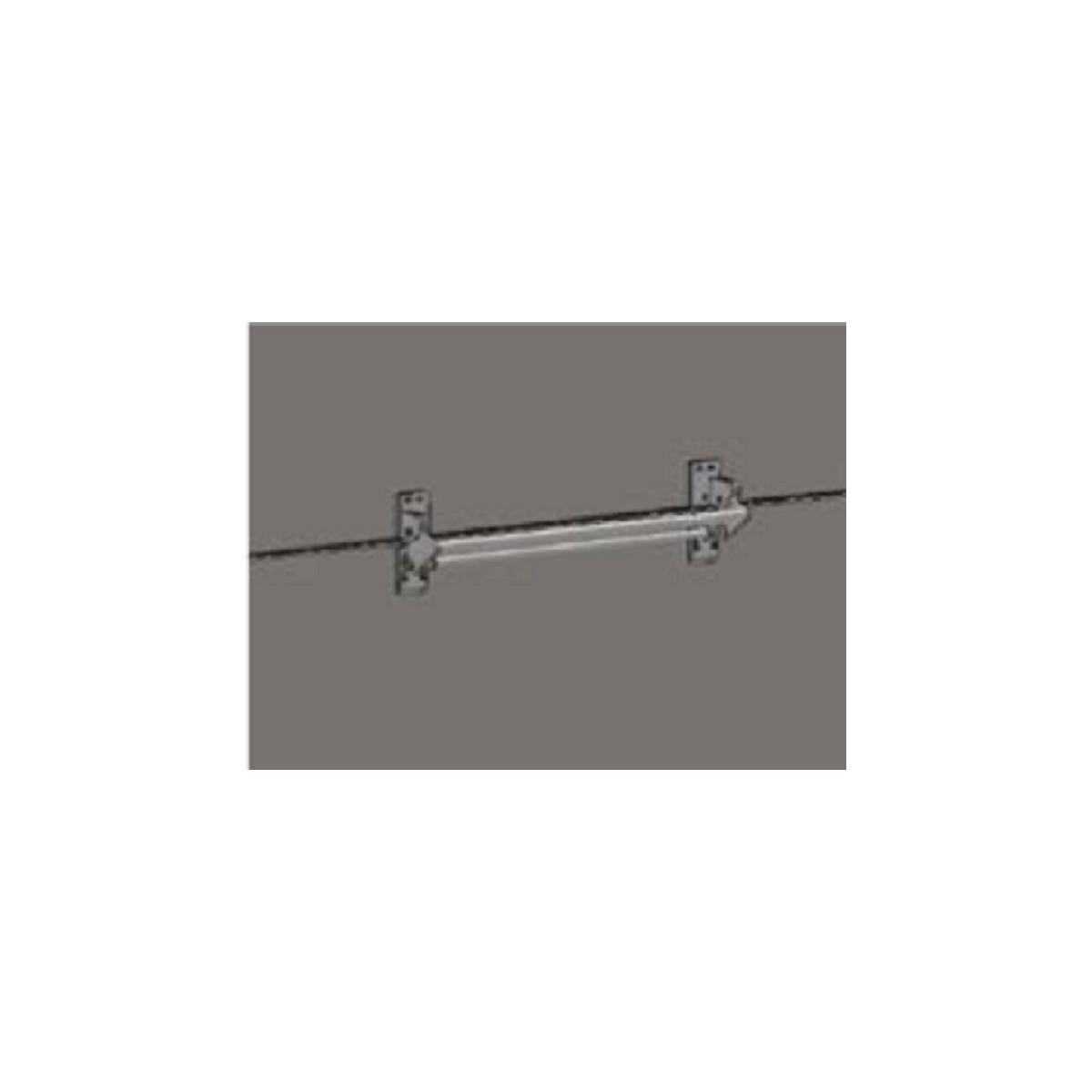

Eccentric bow handle for LCT-HTW-1000 to 1200
