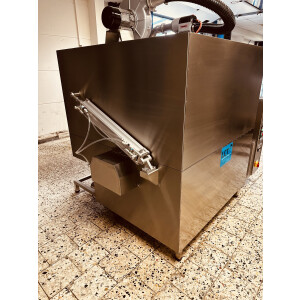

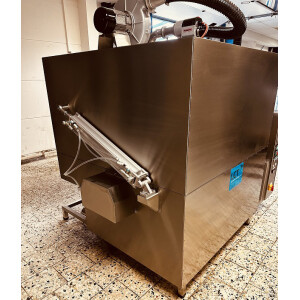

LCT HTW 1200, Standard: Without insulation as standard

SKU: 0001-32WT

Category: HTW

Delivery time: ca. 5 weeks (DE - int. shipments may differ)

41.099,03 €

incl. 19% VAT ,

→ Single-stage cleaning and degreasing including hot air drying and insulation

→ Completely made of stainless steel

→ Easy and safe

→ Ideal for part cleaning, maintenance, production, manufacturing, and service

→ Washing fluid tank: 485 liters

→ Contaminants: Resin, wax, lime, rust (mineral), corrosion protection, soldering flux, polishing pastes, dust, abrasion, release agents, oil, grease, carbonized oil, soot

Stck

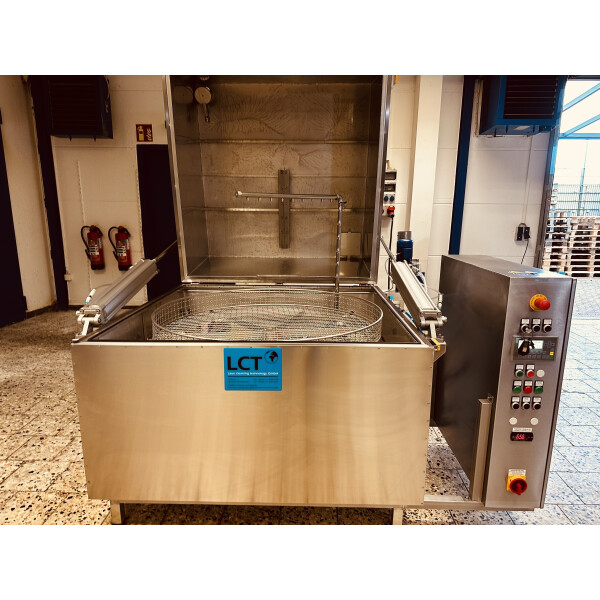

Fully automatic small parts washing system for single-stage cleaning and degreasing, including hot air drying and insulation.

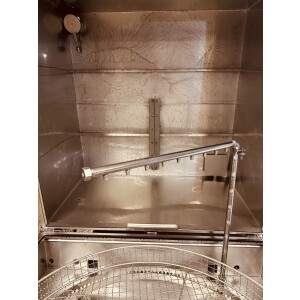

A maintenance-friendly high-pressure spray system with a three-dimensional nozzle system is offered by the LCT HTW 1200 for thorough cleaning and degreasing of tools and other parts.

Key features:

Made entirely of stainless steel (V2A), including hot air drying and insulation
Steam vapor extraction, pneumatic lid opening
Digital temperature controllers, automatic basket drive
Electrically driven rotating basket with motor protection
Push-button for rotating the basket outside the cleaning procedure

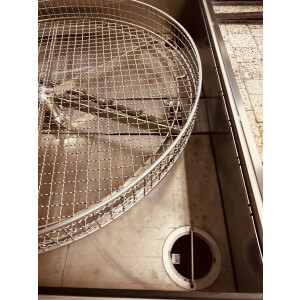

Stainless steel tank cover and screen filter beneath the basket, dry-run protection, door safety switch

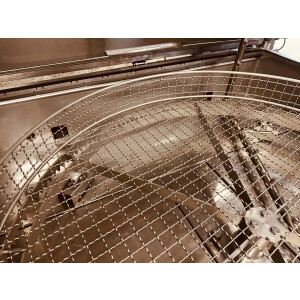

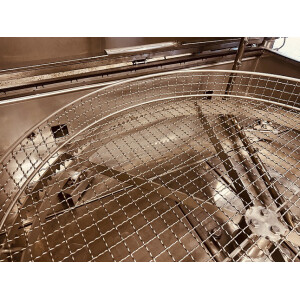

Connections for plate phase separators, basket diameter 1175 mm - basket load capacity 350 KG
Clear height between the basket and nozzle bar 650 mm - tank capacity 485 liters
Siemens PLC control for process regulation
Effective and cost-efficient; energy-efficient
Operating pressure: 4 bar
Fan nozzles
Pneumatic actuator

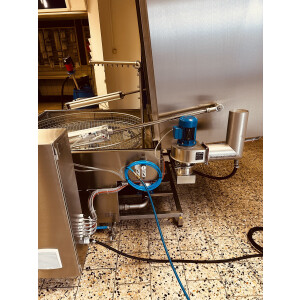

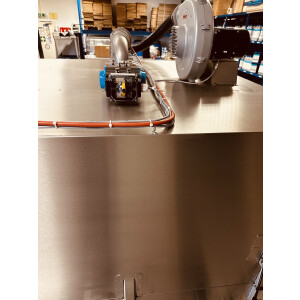

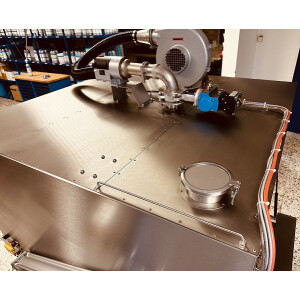

Air blower, air heater, hot air flap, air knife
