LCT HTW 1000 incl. hot air drying and insulation

LCT HTW 1000 incl. hot air drying and insulation

SKU: 0001-31WT

Category: HTW

Delivery time: ca. 7 weeks (DE - int. shipments may differ)

38.431,05 €

incl. 19% VAT ,

The LCT HTW 1000 incl. hot air drying and insulation contains the following components:

→ Single-stage cleaning and degreasing including hot air drying and insulation.

→ Made entirely of stainless steel.

→ Easy and safe to use.

→ Ideal for part cleaning, maintenance, production, manufacturing, and service.

→ Washing fluid tank: 300 liters.

→ Handles contaminants such as resin, wax, lime, mineral rust, corrosion protection, soldering flux, polishing pastes, dust, abrasion, release agents, oil, grease, carbonized oil, and soot.

Stck

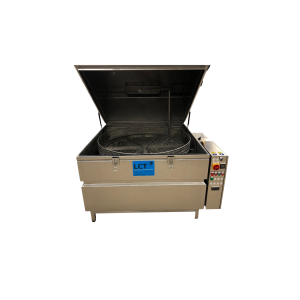

Fully automatic small parts washing system for single-stage cleaning and degreasing, including hot air drying and insulation.

A maintenance-friendly high-pressure spray system with a three-dimensional nozzle system is offered by the LCT HTW 1000 for thorough cleaning and degreasing of tools and other parts.

Key features:

Made entirely of stainless steel (V2A), including hot air drying and insulation
Steam vapor extraction, pneumatic lid opening
Digital temperature controllers, automatic basket drive
Electrically driven rotating basket with motor protection
Push-button for rotating the basket outside the cleaning procedure
Stainless steel tank cover and screen filter beneath the basket, dry-run protection, door safety switch
Connections for plate phase separators, basket diameter 975 mm - basket load capacity 350 KG
Clear height between the basket and nozzle bar 480 mm - tank capacity 300 liters
Siemens PLC control for process regulation
Effective and cost-efficient; energy-efficient
Operating pressure: 4 bar
Fan nozzles
Pneumatic actuator
Air blower, air heater, hot air flap, air knife
